How GPUs Work: A Journey Into Graphics Processing

By -

How GPUs Work: A Journey Into Graphics Processing

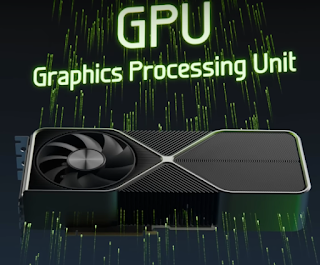

Ever wondered how your computer generates those stunning, lifelike video game graphics? It’s all thanks to your GPU, or Graphics Processing Unit, working tirelessly behind the scenes. Let's break down the complexity of GPUs into simple and relatable terms.

1. The Immense Power of a GPU

Imagine playing a game like Cyberpunk 2077. Your GPU is performing around 36 trillion calculations per second to create those lifelike environments! To put that in perspective:

  • Running a game like Mario 64 from 1996 requires 100 million calculations per second.
  • Minecraft in 2011? Around 100 billion calculations per second.
  • Modern games like Cyberpunk 2077 demand computational power equivalent to 4,400 Earths of people, each performing a calculation every second.

2. GPUs vs. CPUs: A Simple Analogy

  • CPU (Central Processing Unit): Think of it as a jumbo jet—fast, flexible, and capable of handling diverse tasks.
  • GPU (Graphics Processing Unit): Imagine a cargo ship—not as fast, but capable of carrying a massive load.

This trade-off helps explain their differences:

  • CPU: Handles tasks like running your operating system, processing input devices, or managing networks.
  • GPU: Specializes in repetitive calculations over vast amounts of data, like rendering video game graphics.

3. What's Inside a GPU?

At its core, a GPU is a sophisticated chip made up of billions of tiny switches called transistors. Here's how it’s structured:

  • Graphics Processing Clusters (GPCs): These are the building blocks of the GPU.
  • Streaming Multiprocessors (SMs): Found within each GPC, SMs handle smaller units of work.
  • Cores:
    • CUDA Cores: The basic calculators for addition, multiplication, and more.
    • Tensor Cores: Specialized in matrix calculations, used in AI and deep learning.
    • Ray Tracing Cores: Handle realistic lighting and reflections in games.

For instance, the NVIDIA 3090 GPU has:

  • 10,752 CUDA Cores
  • 336 Tensor Cores
  • 84 Ray Tracing Cores

4. How Does the GPU Process Data?

Let’s look at how GPUs handle millions of tasks simultaneously using parallel processing:

  • Single Instruction, Multiple Data (SIMD): GPUs execute the same instruction across different data sets.

    • Example: Transforming a 3D cowboy hat into a world scene involves updating 14,000 vertices in its structure. The GPU processes all these vertices at once, making it incredibly efficient.

  • Threads and Warps:

    • A thread performs a single calculation.
    • 32 threads combine into a warp.
    • Warps are grouped into blocks, which are managed by Streaming Multiprocessors (SMs).

5. The Role of GPU Memory

When you start a game, your GPU loads 3D models, textures, and data into its memory for processing.

  • GDDR6X Memory: High-speed memory chips designed to feed the GPU cores with data.
  • Bus Width: Determines how much data can move between memory and the GPU at once. For example, modern GPUs achieve bandwidths of over 1 terabyte per second!

6. Why GPUs Excel in Gaming and Beyond

  • Gaming: GPUs transform millions of 3D objects into visually stunning environments.
  • AI and Machine Learning: Tensor cores perform trillions of matrix calculations needed for neural networks.
  • Bitcoin Mining: GPUs can generate millions of cryptographic hashes per second, though specialized hardware like ASICs now dominate this field.

7. Keeping it Cool

All this power generates heat. GPUs rely on:

  • Heat Sinks and Fans: Remove heat from the GPU.
  • Voltage Regulators: Ensure stable power delivery.

8. Fun Fact: Same Chip, Different Models

Did you know the NVIDIA 3080, 3080 Ti, and 3090 all use the same chip design? The difference lies in how many cores are active:

  • Chips with defects in certain areas are partially disabled and sold as lower-tier models, reducing waste.

9. Continuous Innovation

Modern GPUs are pushing the boundaries with advancements like:

  • HBM (High Bandwidth Memory): Stacked memory for faster data access.
  • Turnary Encoding (PAM3): A smarter way of sending data, increasing efficiency while using less power.

Why GPUs Matter

From gaming and AI to scientific simulations, GPUs are the engines of modern computing.

They transform mountains of data into stunning visuals and groundbreaking solutions.

Understanding how GPUs work isn't just fascinating—it reveals the incredible technology driving our digital world!
